Immunology Instruments

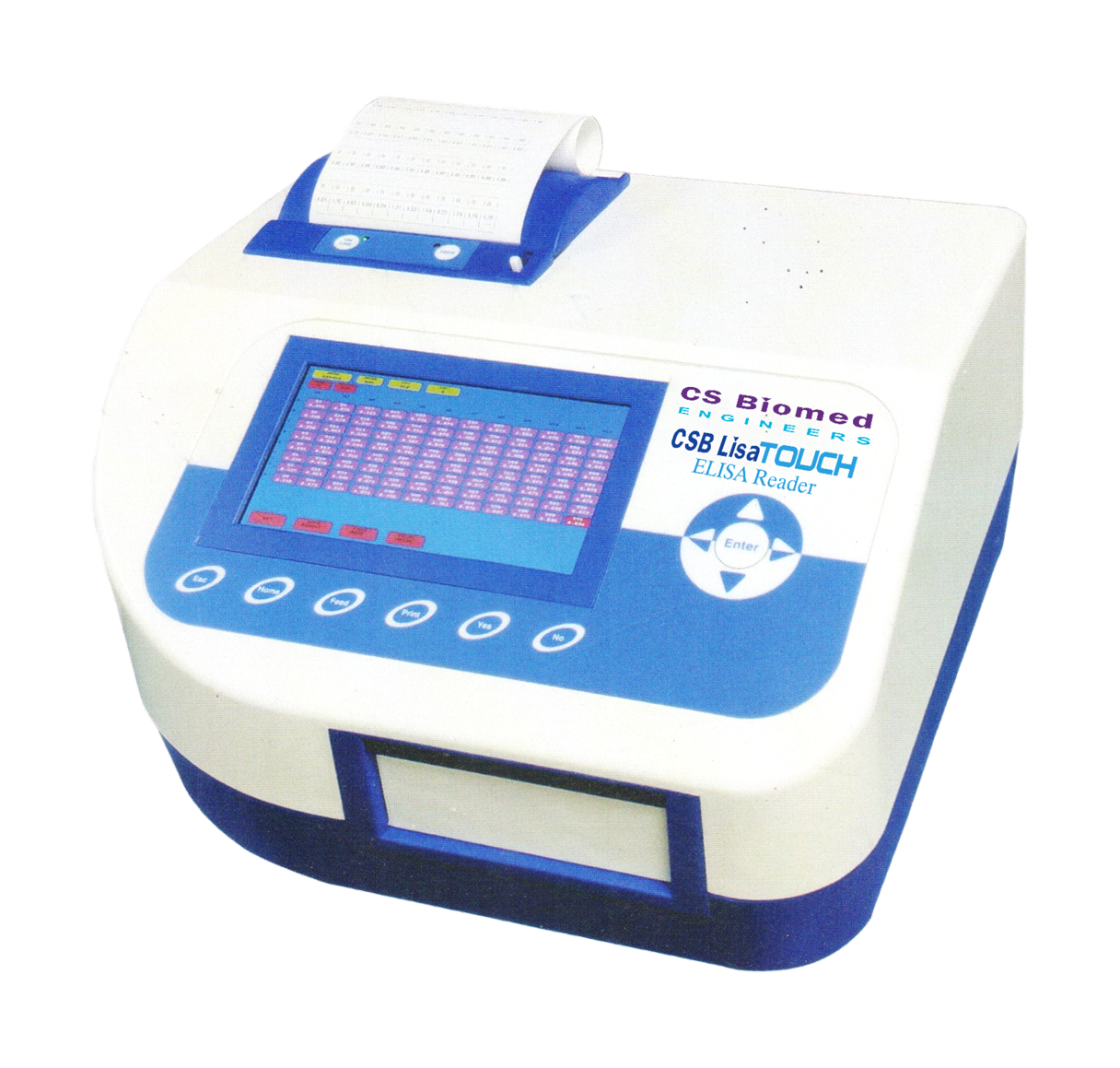

CSB LISA TOUCH - ELISA READER
Compact ELISA Plate Reader with built-in printer, shaker and 7 inch graphic TFT
Colour display with touch screen and also membrane keypad. Open system instrument with all
possible ELISA modes. High Linearity more than 3.500 ABS.
7 Inch Colour Graphics TFT Display
Touch Screen & Membrane Key Pad
Wide Thermal Printer
Multicalibration Graph with EDIT option to minimize error
Flexible CUT OFF Program
High Linearity – Can read Absorbance more than 3.500 ABS
Various analysis mode and calculations
Large Memory: 290 Tests, 9600 Patient results & 10 Plate Data
CSB - LISA WASH
CSB - LISA WASH is a compact ELISA Plate Washer is easy to use that can be
programmed for various modes of ELISA Wash. It is also equipped with built-in 2-plate dry bath
incubator maintained at 37 degree Celsius with individual timer. Large Colour Display with Touch
screen provides easy to operate. Programmable Multi-step Shaking option.
Built-in Two Plate Incubator at 37 degree Celsius with programmable timer.
Co-axial autoclavable Manifold made of Derlene is specially designed to prevent scratches at well
bottom.
Peristaltic Pimp with planetary gear driven by DC motor with long lasting chemically resistant tubing
for trouble free and quick dispensing.
Sophisticated High-Pressure Vacuum Pump ensures proper Aspiration and drying of micro wells.
Waste Bottle of 2 Liter capacity with in-built Bottle Full magnetic Sensor.
Built-in Stabiliser ensures operating the Washer at 180-240 voltage range.
Auto Priming before start of new Wash prevents contamination with previous Wash Buffer.
Auto Rinse by Distilled water while on Stand-by to prevent Clogging.
User programmable of Wash Cycle, Soak Time & Dispensing Volume.
Continuous Aspiration to prevent Overflow.
Auto Rinse while Shut down to prevent Clogging in fluid path due to crystallization of Wash Buffer.
Programmable Multi Step Shaking.
