Critical Care Instruments
PSR + Electrolyes Analyser
Microprocessor based compact Electrolytes Analyser to measure Sodium, Potassium, Chloride, Ionic Calcium, Lithium, pH values from Whole Blood/Serum/Plasma/Urine and different body fluids. Principle of operation is Gold Standard Ion Selective Electrode(ISE) for better accuracy for Critical Care Patients.
Maintenance free electrodes ensures longer life span, minimum tubings and valves for smooth operations. Compact and RFID sensor based Reagent Pack ensures plug and play operations with intelligent software to track consumption of reagents with sample numbers. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Electrolytes Analysers.
Principle: Direct measurement with ISE.
Sample Type: Whole Blood, Serum, Plasma, CSF & Urine
Parameters: Na, K, iCa, Cl, Li, pH
Sample Volume: 140 ul.
Storage: 10000 sample data.
Parameter Combinations: 10 combinations.
Input: Alphanumeric Keypad
Printer: In-built Thermal
Measuring time: 60 seconds.
Port: USB & Serial for LIS integration.

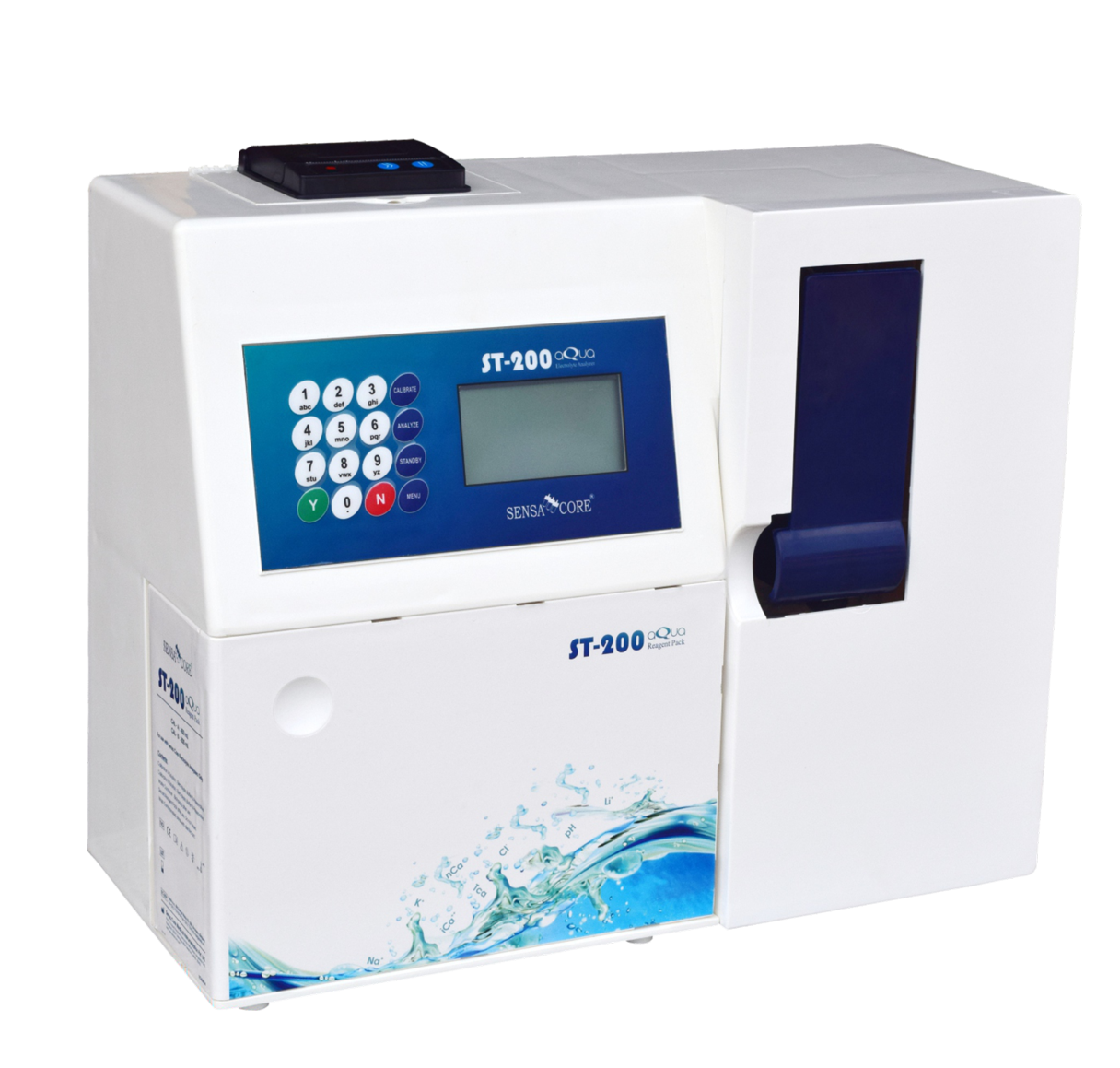

AQUA Electrolytes Analyser
Microprocessor based compact Electrolytes Analyser to measure Sodium, Potassium, Chloride, Ionic Calcium, Lithium, pH values from Whole Blood/Serum/Plasma/Urine and different body fluids. Principle of operation is Gold Standard Ion Selective Electrode(ISE) for better accuracy for Critical Care Patients.
Maintenance free electrodes ensures longer life span, minimum tubings and valves for smooth operations. Compact and RFID sensor based Reagent Pack ensures plug and play operations with intelligent software to track consumption of reagents with sample numbers. AQUA Electrolyte Analyzer is specifically designed to meet the needs of small to medium-size laboratories using the latest ISE technology. This Electrolyte Analyzers improve lab productivity while delivering sample results economically. Snap-in electrode design, combined with precise control of calibrator volumes, ensure economical operation and a low cost per sample in our Analyzers.
Micro mode available to detect values of low sample volume and for fast analysis time.
Principle: Direct measurement with ISE.
Sample Type: Whole Blood, Serum, Plasma, CSF & Urine
Parameters: Na, K, iCa, Cl, Li, pH
Sample Volume: 100 ul.
Storage: 10000 sample, 250 Urine & 100 QC data.
Parameter Combinations: 10 combinations.
Input: Alphanumeric Keypad
Printer: In-built Thermal
Measuring time: 50 seconds.
Port: USB & Serial for LIS integration.

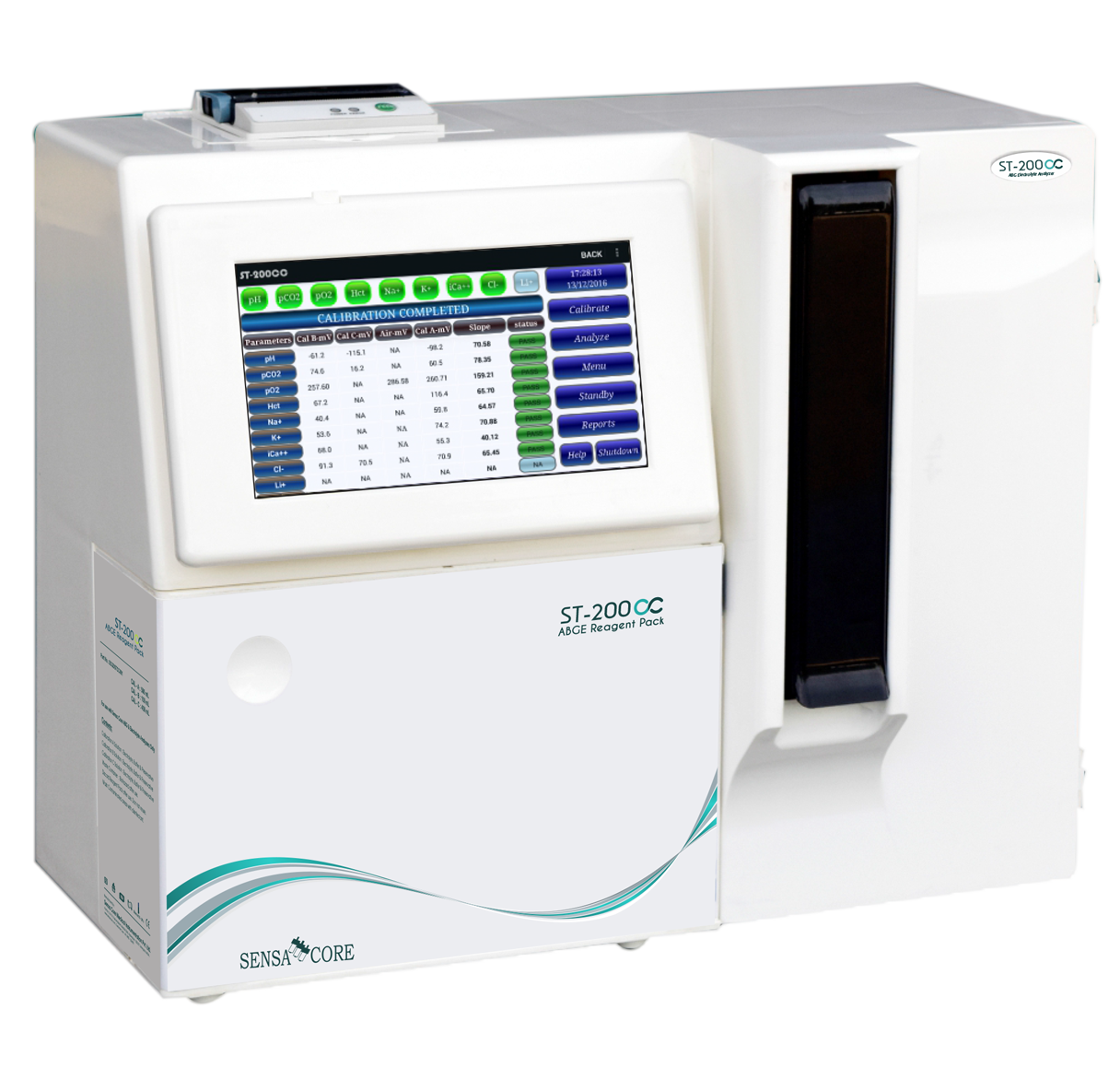

ST-200 CC ABG ANALYSER
ST-200CC Arterial Blood Gas & Electrolytes (ABGE) Analyser is an automated, microprocessor-controlled electrolyte, blood gases and metabolites system that uses current ISE technology to measure electrolytes , Impedance technology to measure HCT and Amperometry technology to measure blood gases. It has optional external barcode scanner, keyboard, and mouse.
ST-200CC ABGE Blood Gas Analyzer is used for quantitative determination/ measurement of Sodium, Potassium, Calcium, Lithium, pH, Chloride, pCO2, pO2, Hct, in whole blood/ plasma/ serum/CSF. The calculated parameters are of SO2, Hb, nCa, HCO3 , TCO2 , SBC, O2Ct, pO%, BE, BE- B, BE-ECF, AG-Na, AG-K, A, AaDO2, a/A in arterial blood, serum, plasma, and urine.
7 inch Colour TFT Display with capacitive Touch panel for better user friendly operation.
Principle: Direct Measurement with ISE, Impedance (Hct) and Amperometry (pO2).
Sample Type: Whole Blood, Serum, Plasma, CSF & Urine
Parameters: ABG: pH, pCO2, pO2, Hct
Electrolytes: Na, K, iCa, Cl, Li, pH
Calculated: Hb, HCO3, BE, BE-B, BE-ECF, TCO2, AG, AG(K), O2, Sat, O2Ct, SBC
Sample Volume: 140 ul.
Storage: 200000 data.
Parameter Combinations: 14 combinations.
Input: Touch Screen
Printer: In-built Thermal
Measuring time: 65 seconds.
Port: Barcode Scanner, Mouse, Keypad (Any 2 at a Time) & LIS Integration (Serial Port)

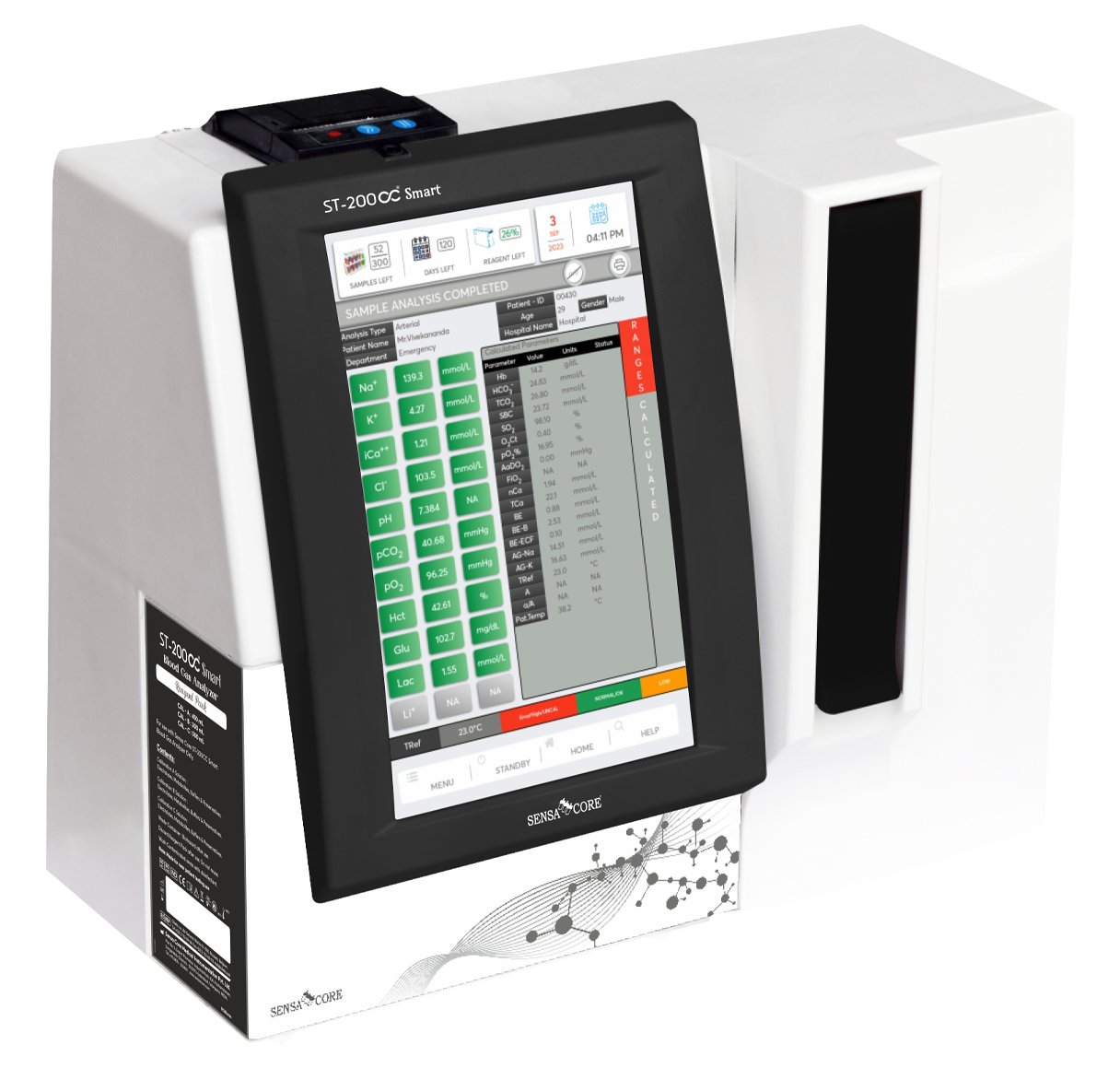

ST-200CC SMART (HYBRID) ABG ANALYSER
Arterial Blood Gas added with Electrolytes and Metabolites (ABGEM) Analysis in a Smart & compact Analyser. Results of 27- parameters in one sampling. 10 inch HD Display with Touch Screen. Live monitoring of reagent consumption and number of samples performed in each Reagent Pack been displayed always on screen. Whole blood/Serum/Plasma /Diluted Urine can be performed in the Analyser by 3- aspiration modes (Sample Tube,Sample Syringe,Capillary).
Storage of 100000 sample data. 15-digit Patient ID with numeric and Alpha Numeric. Single reagent pack for all 16 different combination. Excellent precision and reliability of results. Extremely low cost per test in ABG segment.
Levy-Jennings Chart & QC options available. LIS facility for better connectivity. 2-USB & 1- RS-232 port available.
Automatic Calibration. No maintenance , Plug & Play instrument.
Principle: Direct Measurement with ISE, Impedance(HCT) & Amperometry (pO2,GLU,LAC).
Measuring Time: 120 seconds.
Parameters (Measured):
Blood Gas- pH,pCO2,pO2.
Electrolytes- Na,K,iCa,CL
Metabolites – GLUCOSE, LACTATE
HCT
Calculated: Hb,HCO3,BE,BE-B,BE-ECF,TCo2,AG,AG(K), O2SAT, SBC, nCa, TCa, pO2%,A, AaDO2,
a/A, mOsm.
Display- 10 inch HD LCD with Capacitive Touch.
Printer- 20 column Thermal.
OS- Android
Throughput- 30 Samples/Hour
Storage- 100000 Samples Data.
