Biochemistry Instruments
Semi-Automated

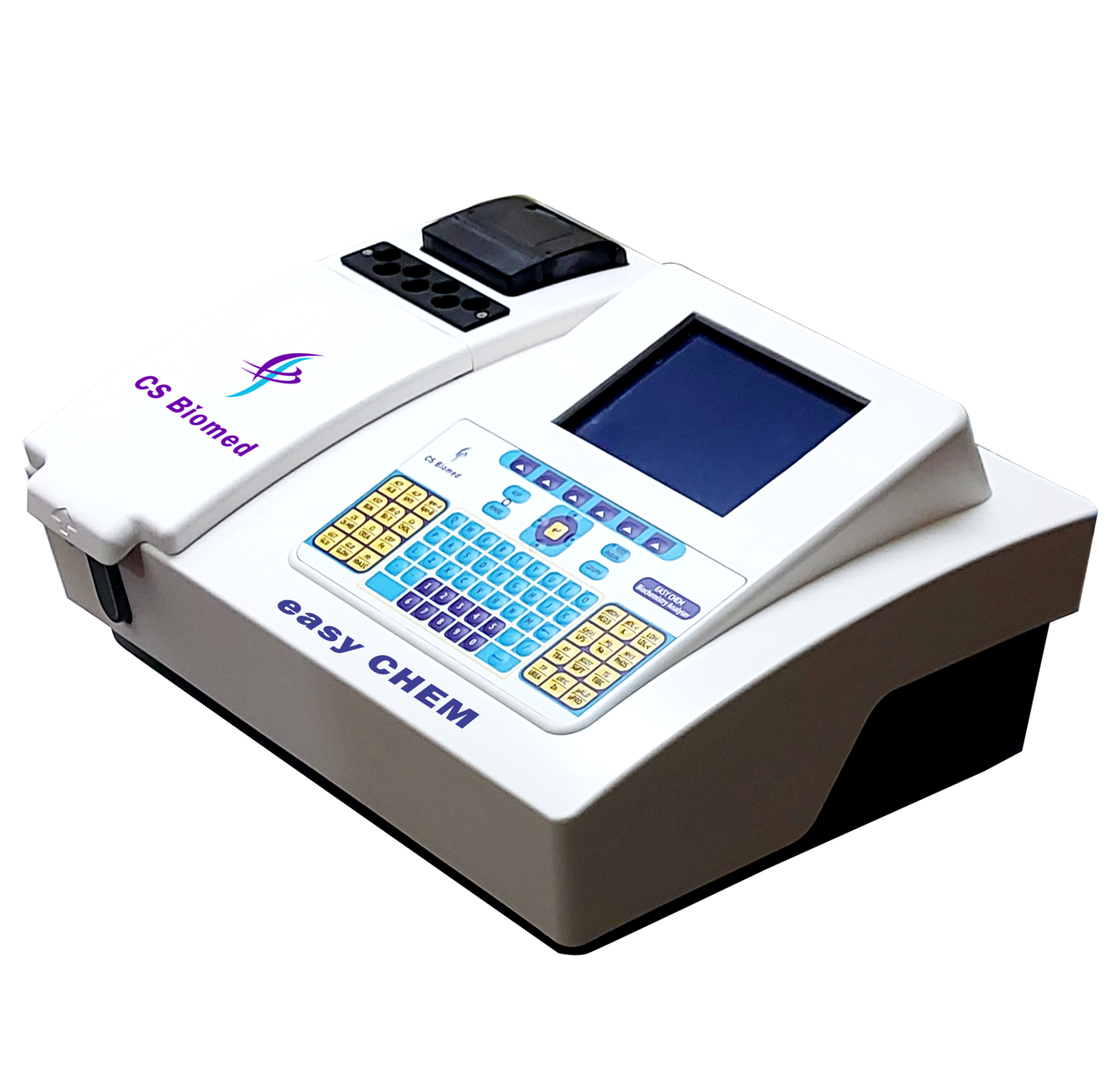

EASYCHEM – SEMI AUTO BIOCHEMISTRY ANALYSER
Semiautomatic Clinical Chemistry Analyser in a simplified manner to operate to analyse
the Enzymes, Substrates, Electrolytes & Coagulation (PT, ApTT) parameters with accuracy for patient
samples. Built-in printer,incubator and 48- direct keys to access test parameters that been designed
in a compact way.
48- Direct Key to access the Routine & Special Biochemistry Tests
Incubator- 7 positions at 37 degree C.
High Speed Graphics Thermal Printer
IAD Filter ensures longer life with high efficiency.
High Liner Range of readings upto 3.000 ABS.
Minimum aspiration Volume of 300 ul ensures low reagent cost.
Online Graph for all Chemistry.
Storage- 200 Test memory & 10000 patient results.
Maintenance free Peristaltic Pump
Quality Control data storage with L-J Graph.

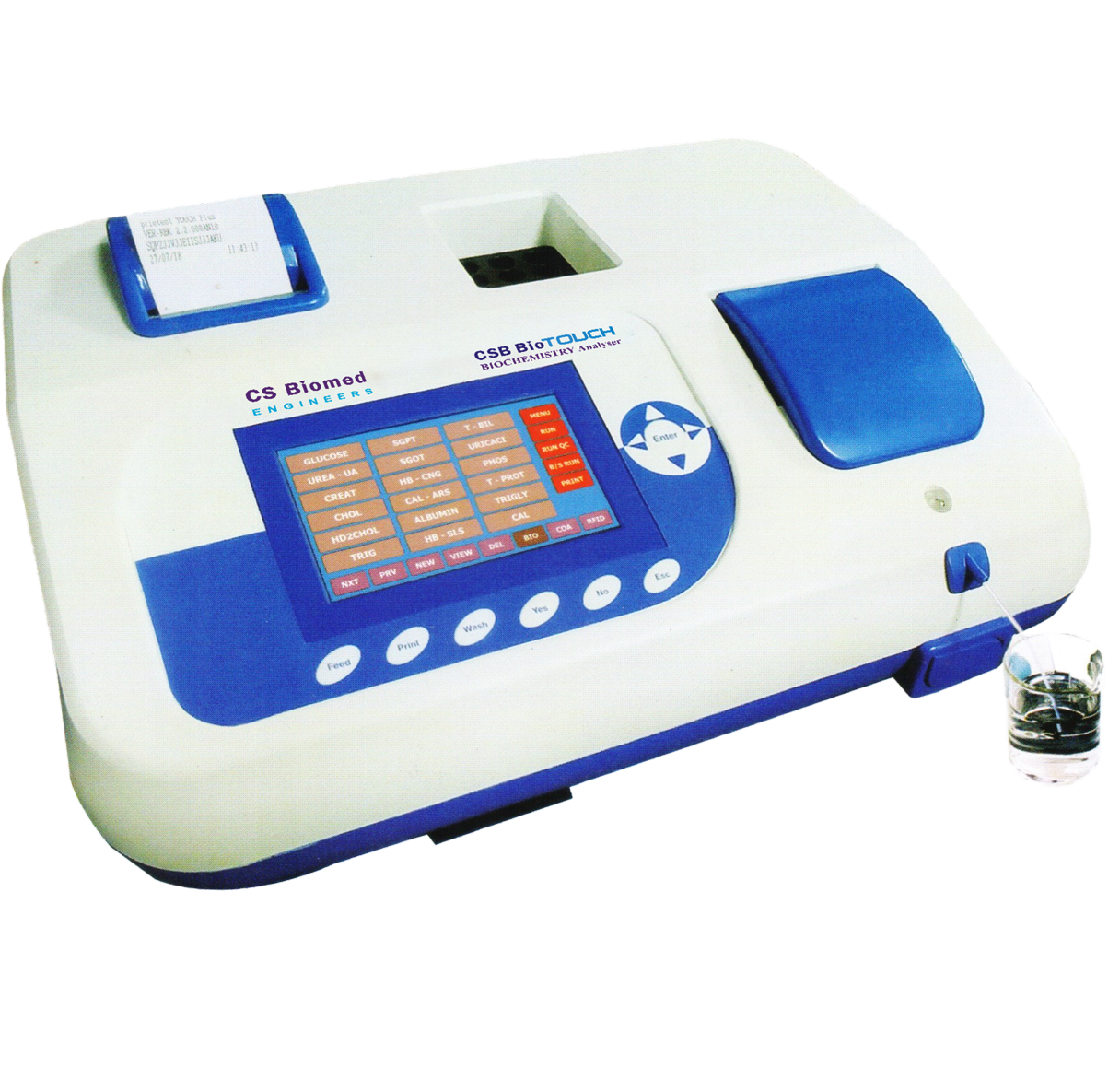

CSB BIO TOUCH – SEMI AUTO BIOCHEMISTRY ANALYSER
State-of-art Semiautomatic Biochemistry Analyser to analyse routine and special biochemistry, turbidimetry & coagulation tests. Time tested analyser known for its simplified programming and operations, accuracy of results and longer life span of spare parts.
Large TFT Colour display with high sensitive touch panel along with membrane keypad,15
positions
incubator,thermal printer and triple cuvette system made this model way ahead in this segment.
Human Interface- Touch Screen and /Membrane Keypad.
Incubator- 15 positions dry block at 37 degree C.
Printer- 20 Column graphics thermal.
High Linear Range- 0.000 to 3.000 ABS
Large Memory: 250 Tests, 10000 Patient results.
Online Graph- with real time absorbance.
QC- LJ & SD Chart
Smart Card- Unique for turbidimetry tests with multipoint digital calibration.
Sophisticated Software- Menu driven user friendly software also recalculation of hyper active
samples without dilution in Kinetic tests.
Built-in Stabiliser- Wide range of input range operation (110-260V).
Long Lamp Life- Special circuitry to enhance the life of halogen lamp.
Fully-automated
ZYBIO EXC- 200 - FULLY AUTOMATED ANALYSER
Fully Automated Clinical Chemistry Analyser designed for small to medium sized
laboratory. Integrated system combining Analyser with Operating system saves more space.
Colourful large Display with Touch screen and intuitive navigation menu offer user friendly
experience. High throughput upto 240 Tests/hour. Minimum reaction volume of 90 ul and lower
water consumption results in cost effectiveness. Bilateral LIS interface ensures convenient data transfer.
Benchtop compact design ensures minimum working space.
Throughput- Upto 240 Test/Hour
Sample Capacity- 40 position.
Reagent capacity- 40 position with 24 hour non-stop refrigeration system.
Reaction Volume- 90 ul.
Water Consumption- 5 Liter/Hour
Methodology- End point, Fixed Time, Kinetic with Multi calibration option.
Wavelength- 340-800 nm in 12 wavelengths.
Control Methods- Real time, within day, between-day QC with L-J Chart.
Operating System- Windows 10/11 supports LIS.
Reagent- Wide range of Zybio original liquid stable reagents more than 100 parameters.
